200W SOLAR PANEL KIT
200W SOLAR PANEL KIT
When disaster strikes and the power is out, do you have a backup power plan?
Our 200W Waterproof Solar Panel Kit is prepared to be your personal power grid in an emergency.
Share
SYSTEM INCLUDES
SYSTEM INCLUDES
- 200W waterproof solar panel
- Instruction manual
200W PANEL DETAILS
200W PANEL DETAILS
- Waterproof: IP68
- Open Circuit Voltage: 25V
- Short Circuit Voltage: 11.4A
- Operating Voltage: 21V
- Operating Current: 9.5A
- Wattage: 200W
- Weight: 15.4 lbs.
- Dimensions Folded: 21.1" L x 24.33" W x 2.125" H (536mm L x 618mm W x 54mm H)
- Dimensions Open: 21.1" L x 92.48" W x 0.98" H (536mm L x 2349mm W x 25mm H)
- Solar Cell Efficiency: ≥22%
- Solar Cell Type: Monocrystalline Silicone
- Interface Type: MC4
WARNINGS
WARNINGS
- Only use the solar panel according to the included instructions.
- Only use a dry, soft cloth or tissue to clean the solar panel.
- Do not use detergent or chemical cleaners to clean the solar panel.
- Do not drop or disassemble the solar panel.
- Do not bend the solar panel.
- Do not store in wet or hot environments.
- Do not allow children to play with the solar panel.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
WATERPROOF PROTECTION

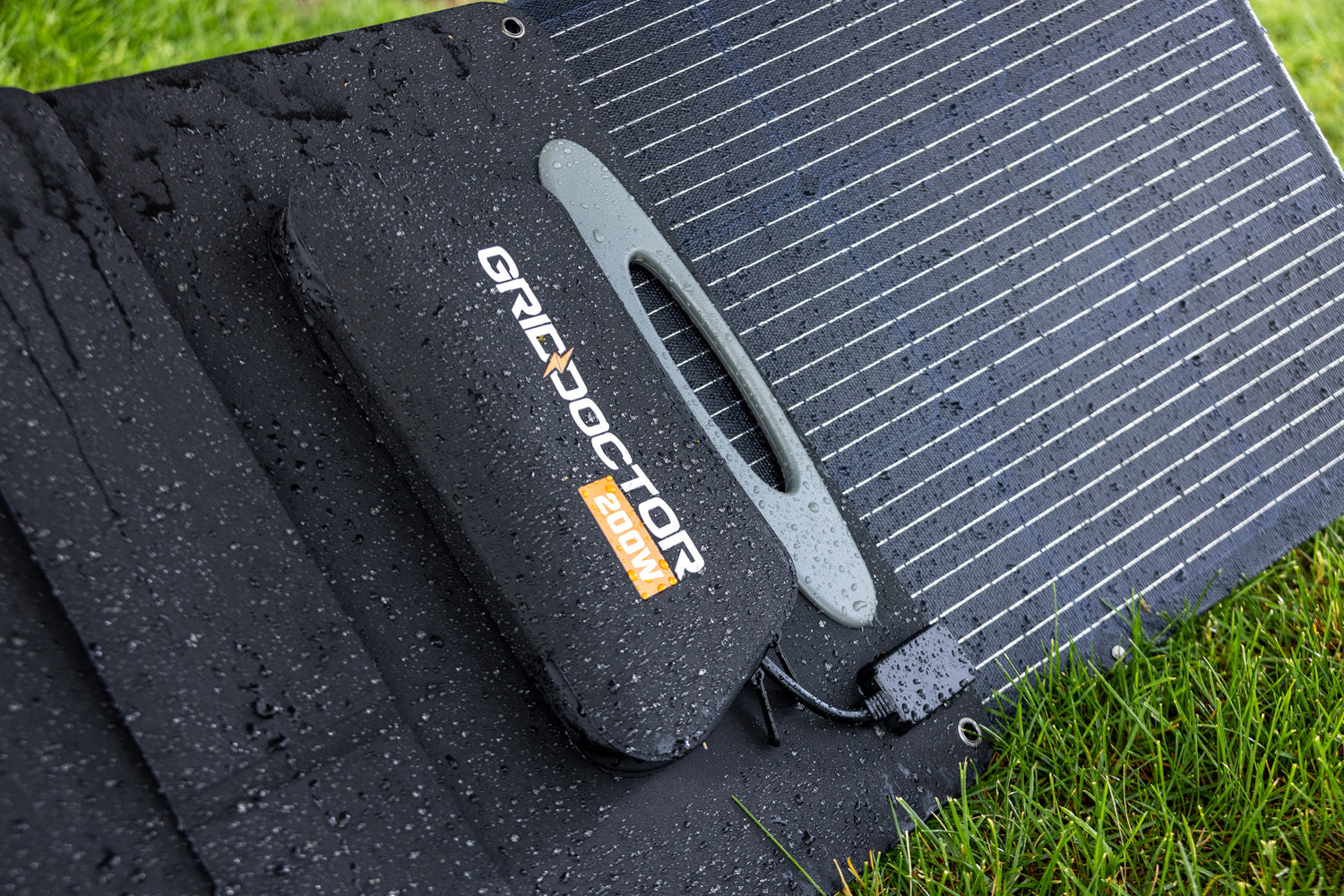

Featuring an IP68 rating, these solar panels remain protected through it all. From a heavy downpour to blizzard snowstorm, don't bother bringing them indoors. These solar panels can take it.
UNLOCK YOUR POWER POTENTIAL

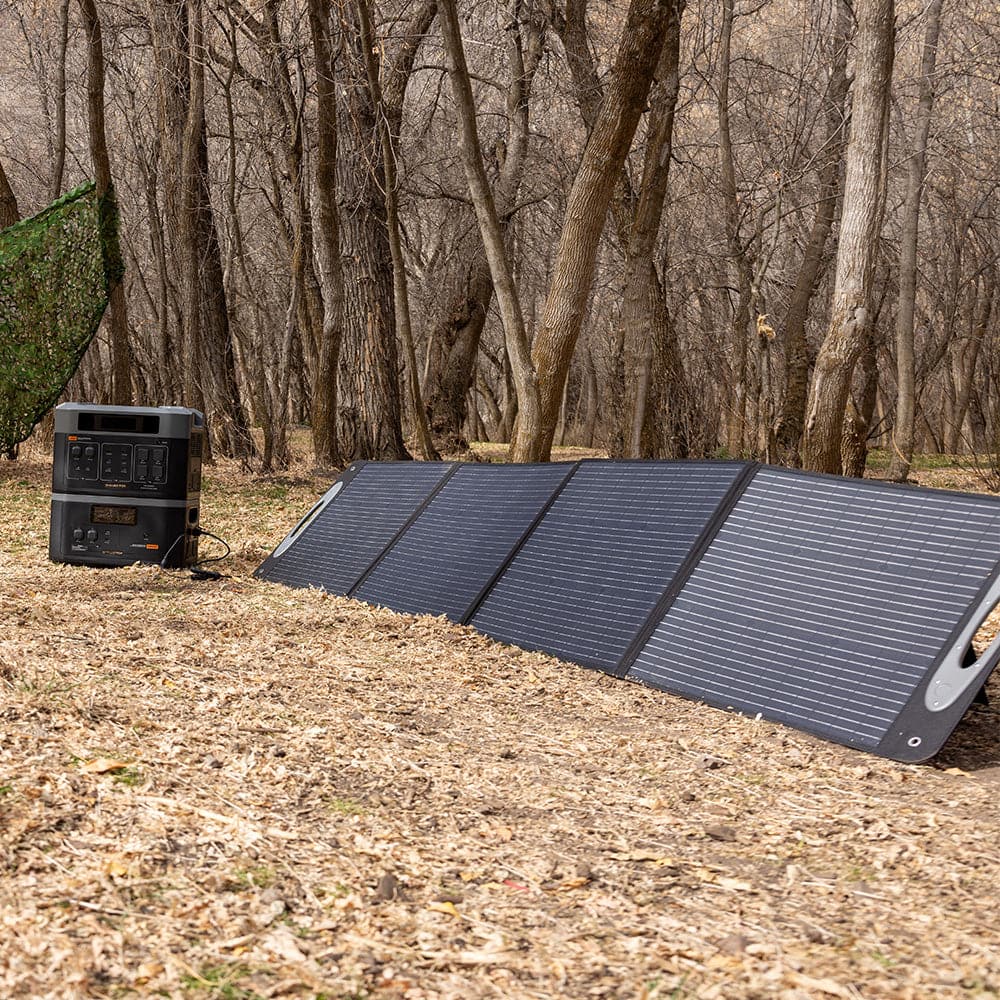

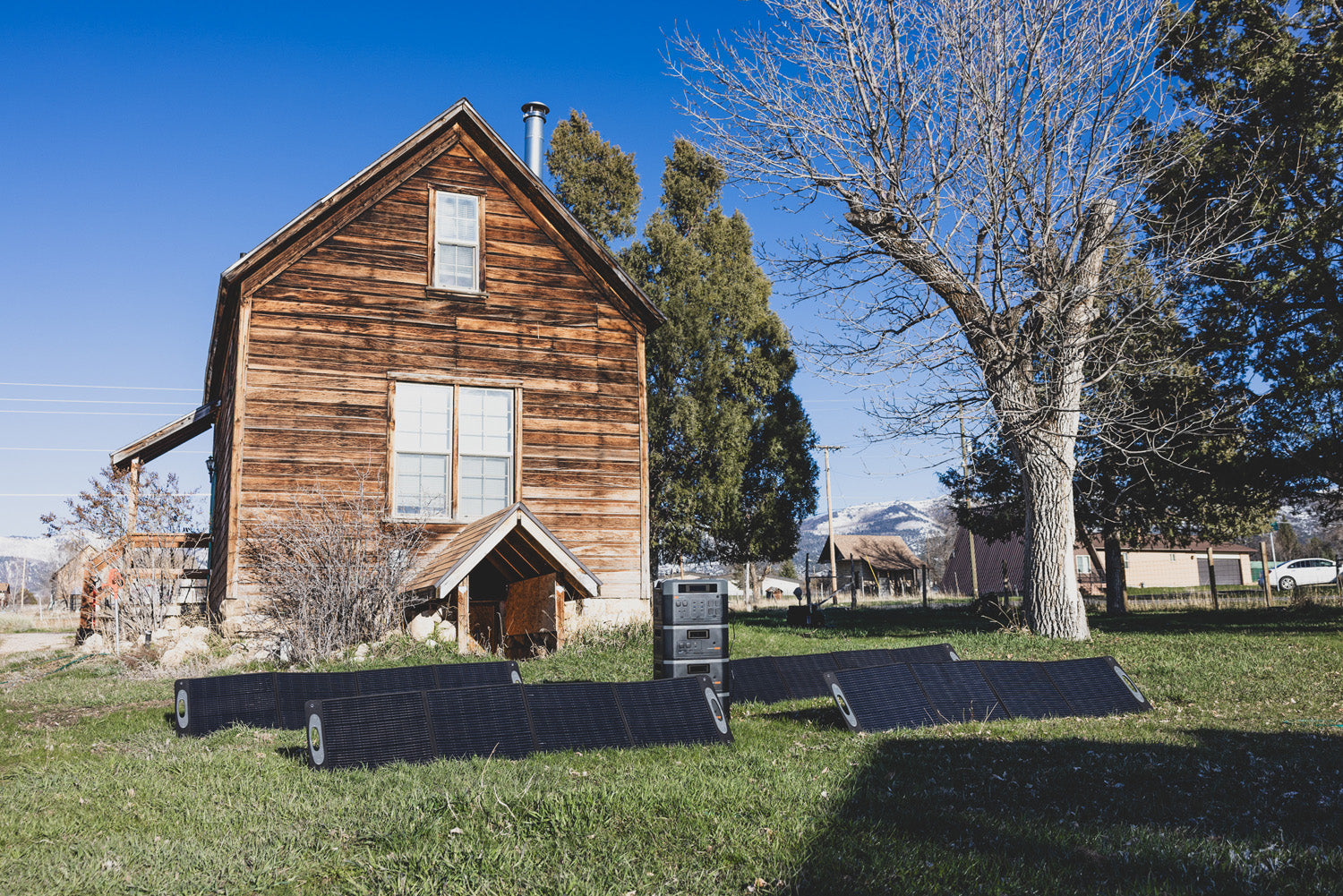

To mazimize the solar power, connect four of these solar panels before plugging into our Grid Doctor 3300 battery. This conjoined force creates faster charging, less time without power, and increases the overall power input.

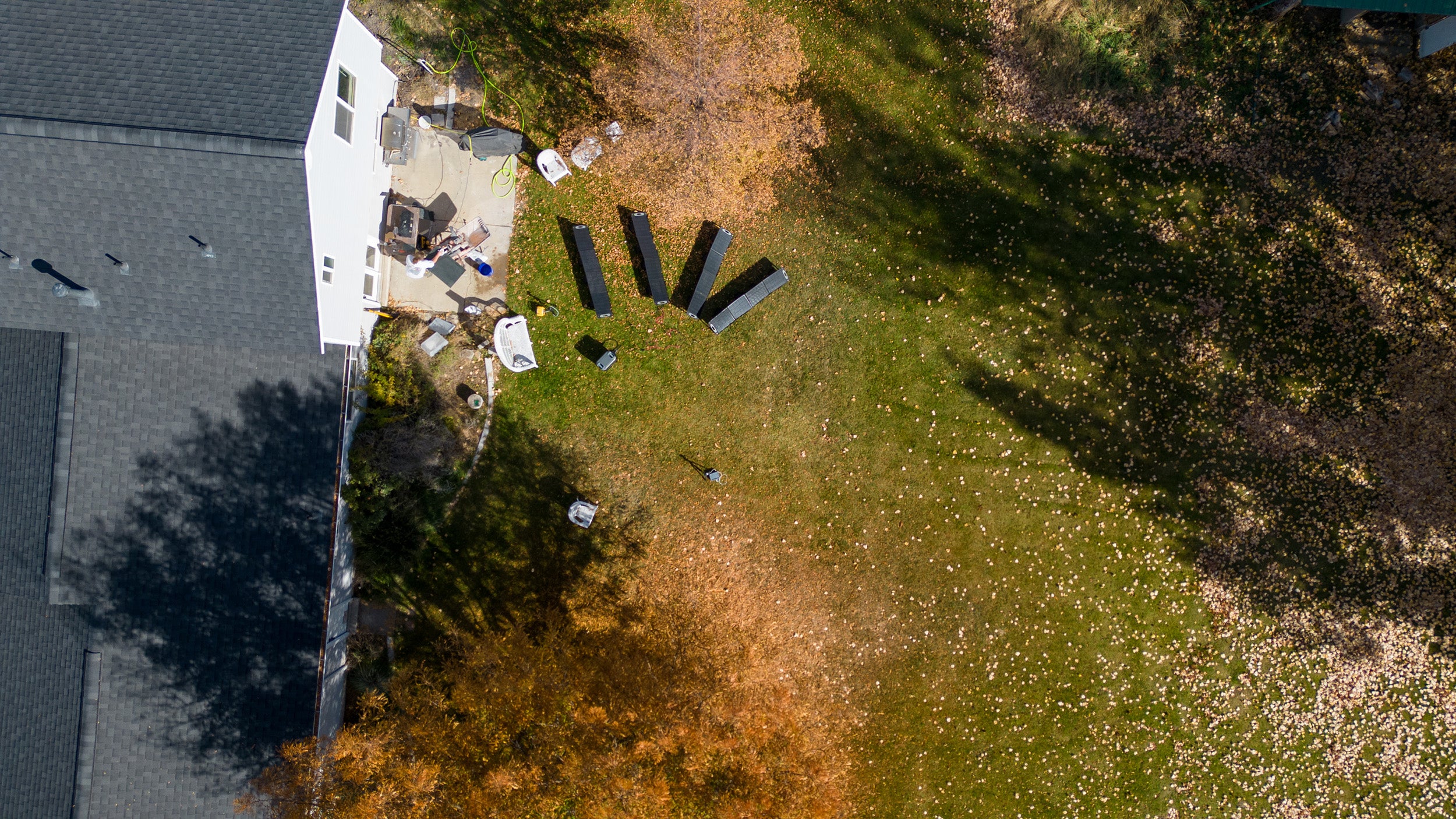

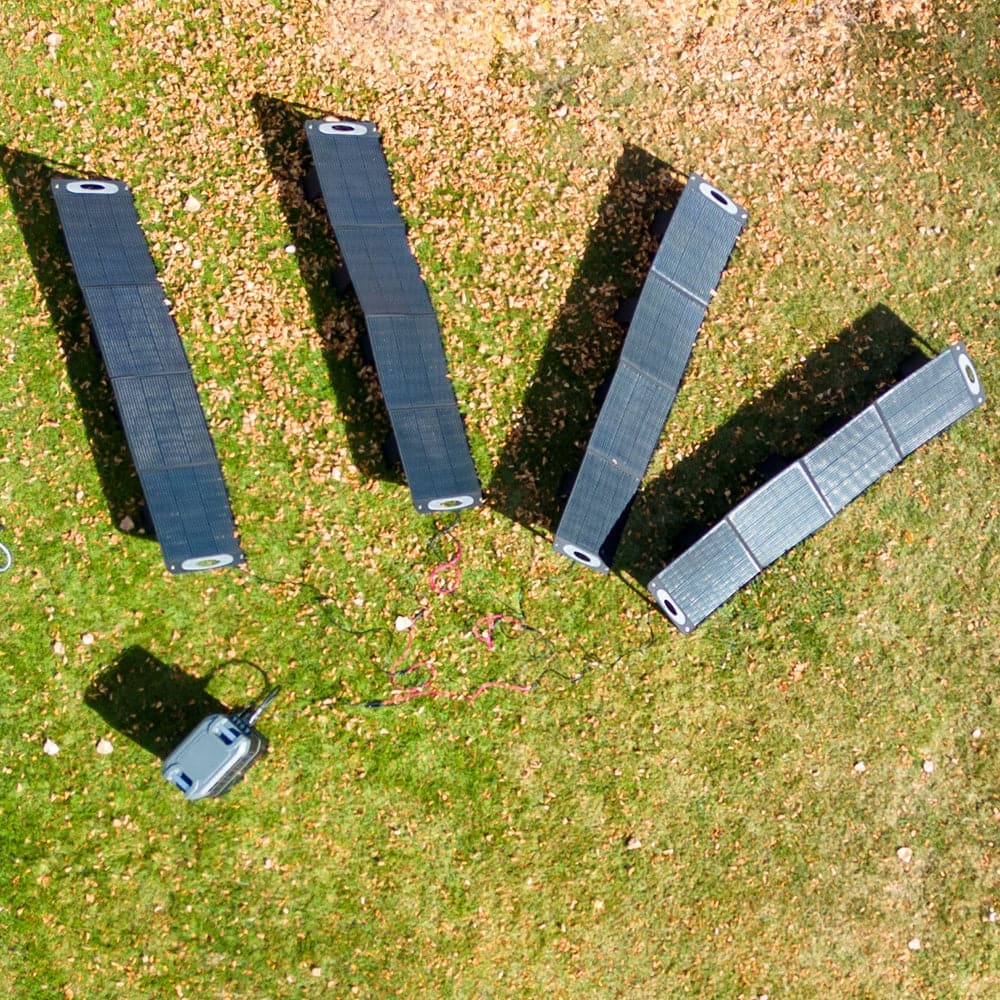

Position some for the morning sun and others for afternoon rays, maximizing how much sun your solar panels soak up without moving them around.
Plus, having four panels means having plenty of backup in case any fail.
SUPREME SECURITY

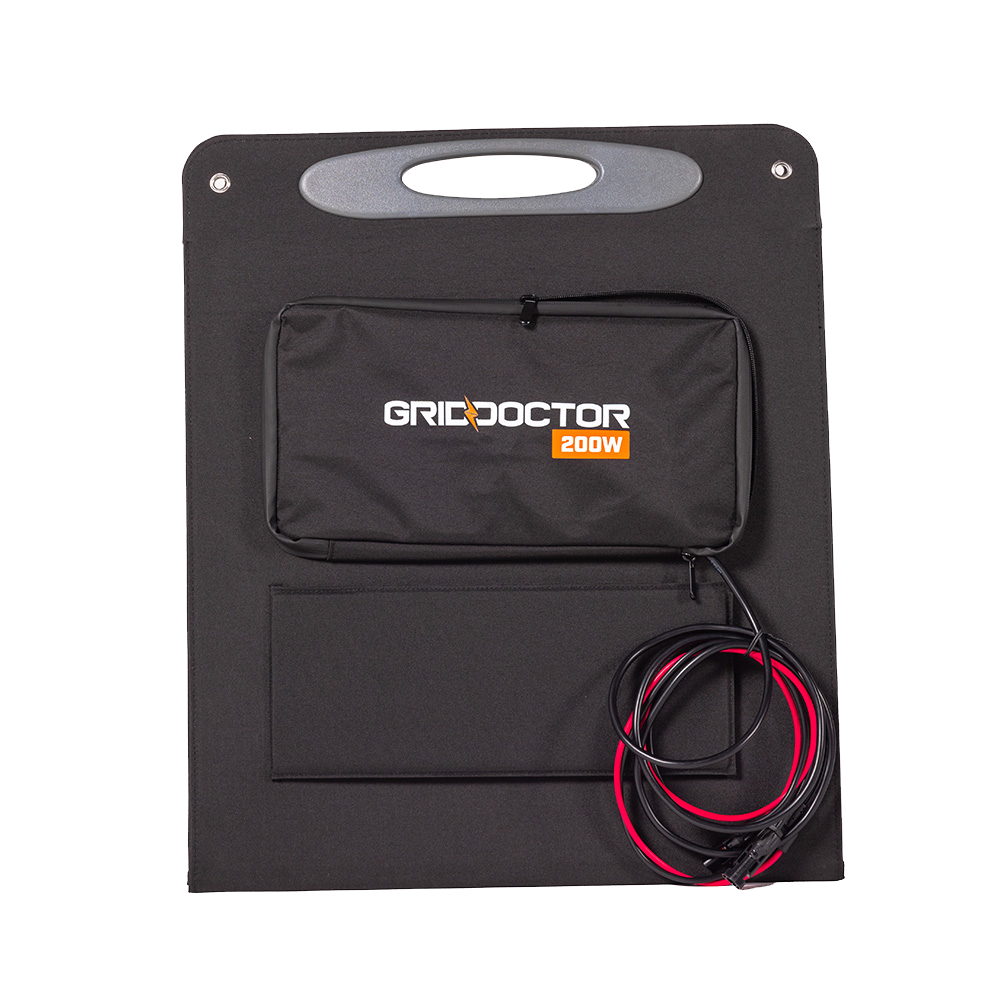

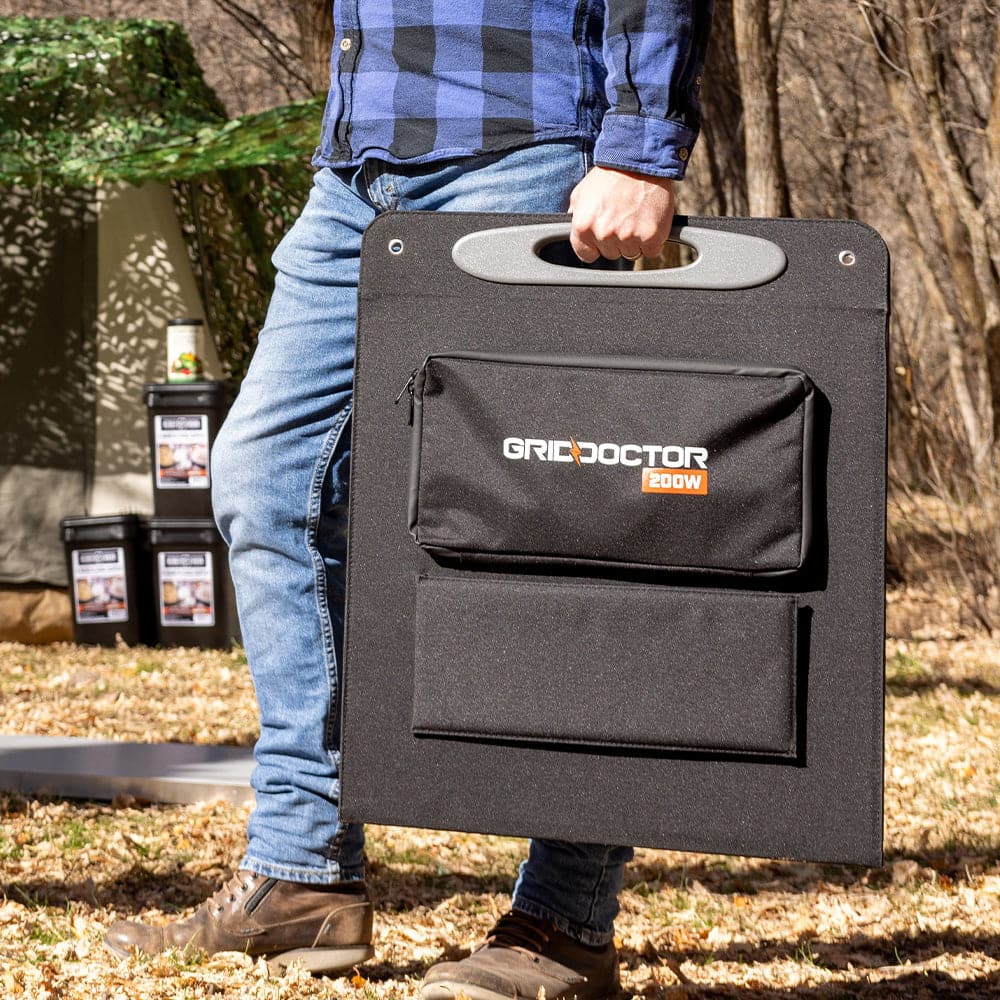

The solar panel’s built-in weatherproof pouch keeps essential cables safe. It eliminates clutter, keeps cables together, and stands up to the wear, tear, and abuse an emergency might bring. As an added bonus, this solar panel can keep you powered up without disclosing your location.
CONNECT TOGETHER

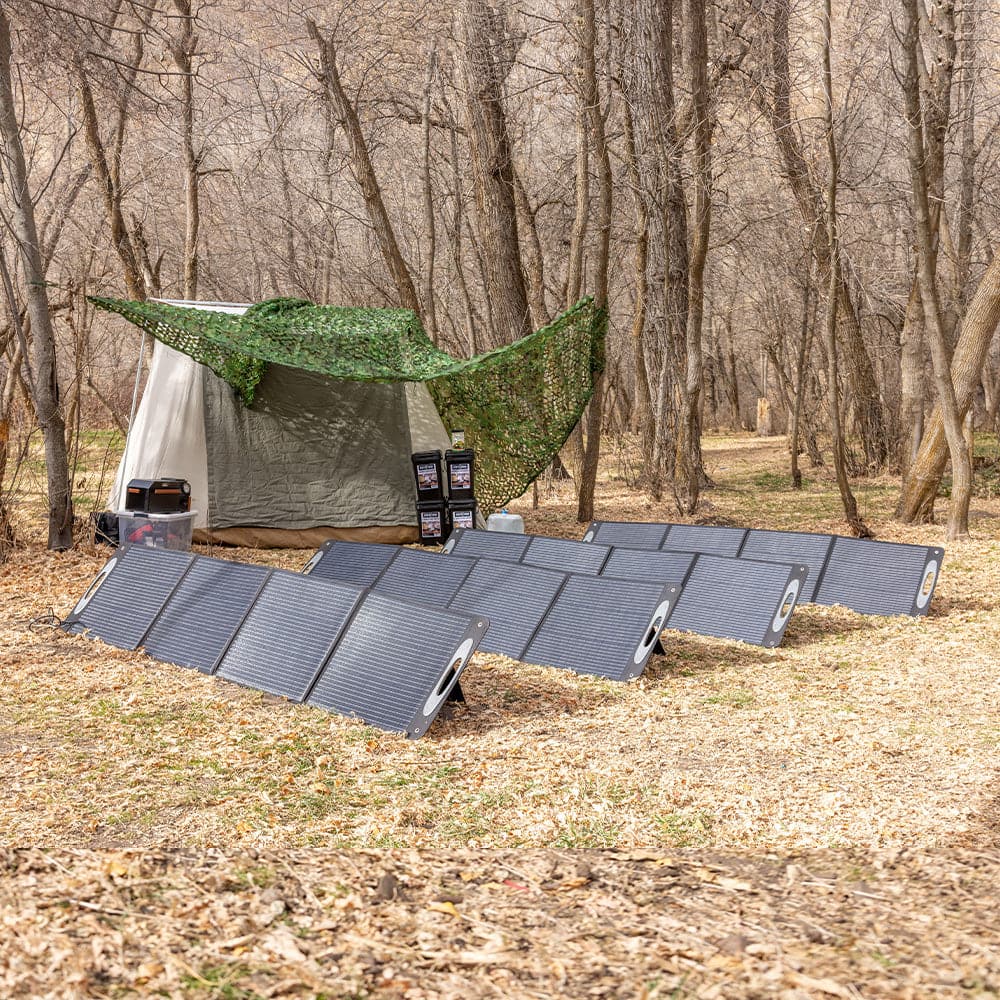

Connect up to four 200W solar panels at once to unleash all of the power. That’s 800W of solar power! The perfect solution for maximizing solar rays on cloudy and intermittently sunny days.
ADAPTS TO YOUR CIRCUMSTANCES
Adaptability is, arguably, the most important trait in an emergency. Not only for you, but for your gear, too.

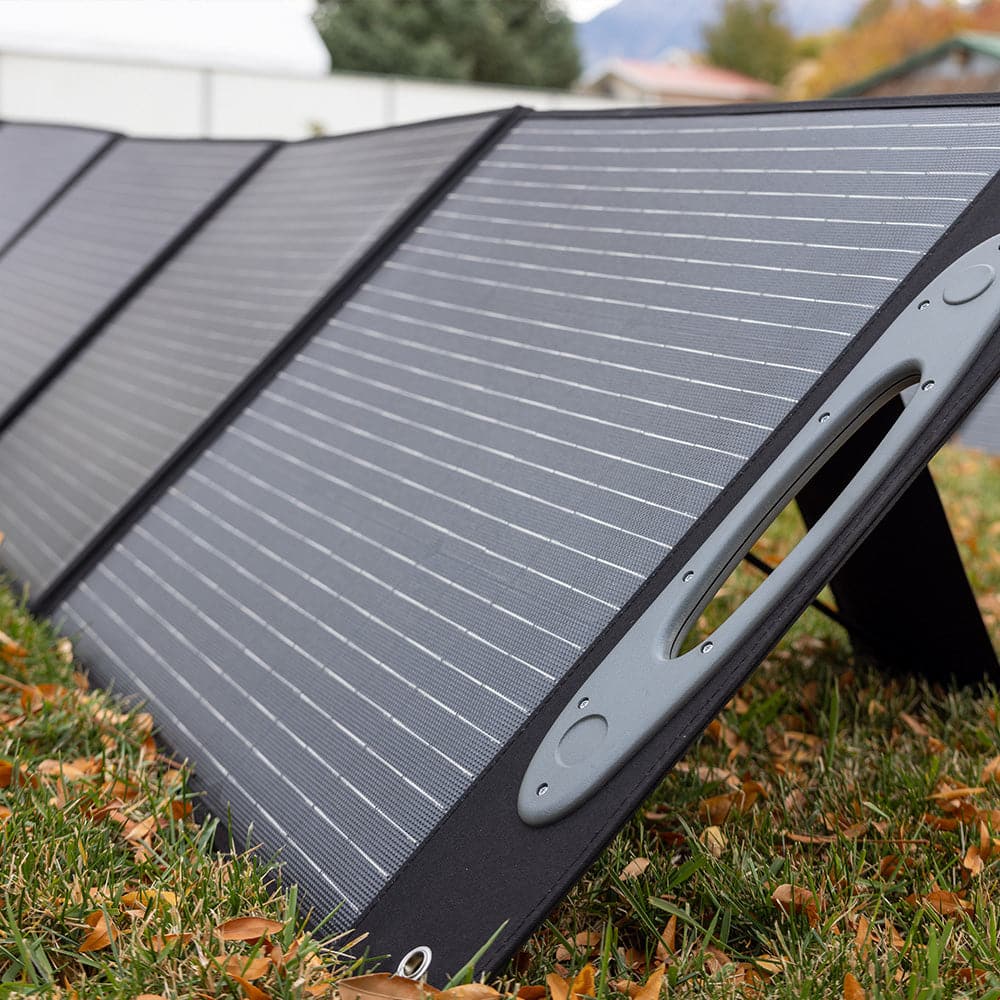

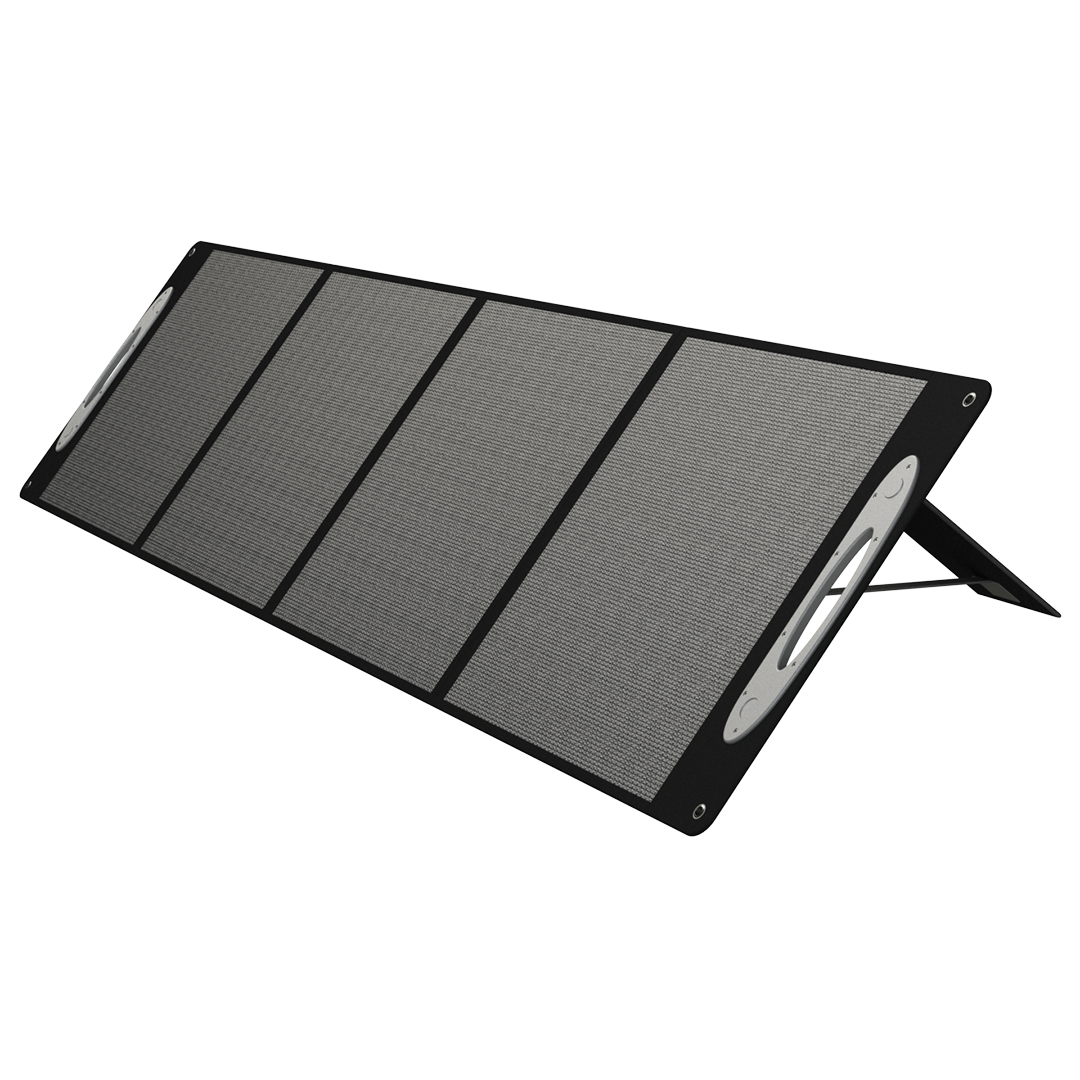

This solar panel features foldable construction and collapsible legs, allowing the ultimate adaptability when your circumstances head south.
-
SEAMLESS SUN TRACKING
Follow the sun’s changing position without completely moving the panel.
-
SURFACE FLEXIBILITY
You never know where an emergency might take you. Regardless of where you land, this solar panel offers endless setup options. Place it on flat rocks or concrete, on the picnic table at your campground, or on the roof of your truck.
-

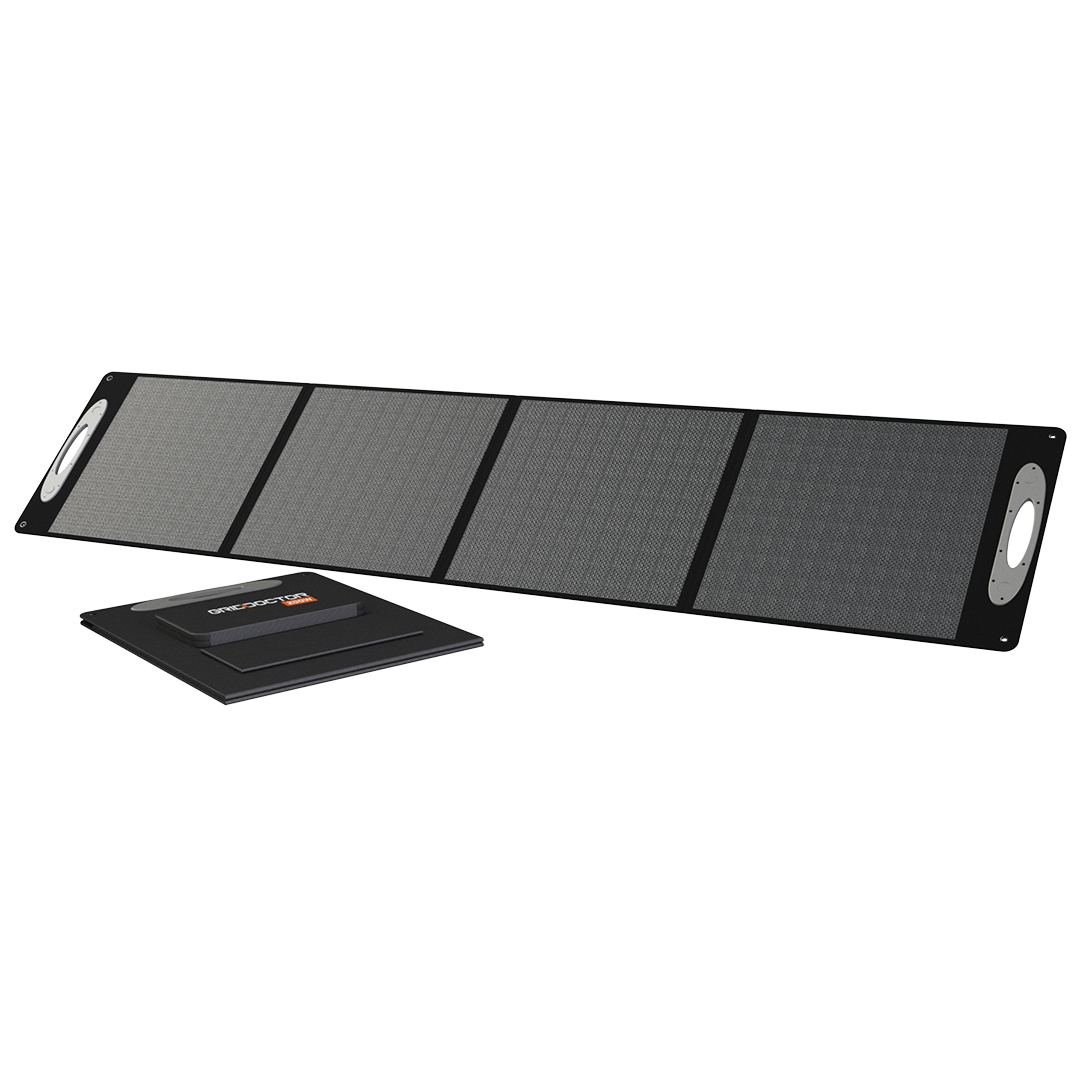

SPACE-SAVING STORAGE

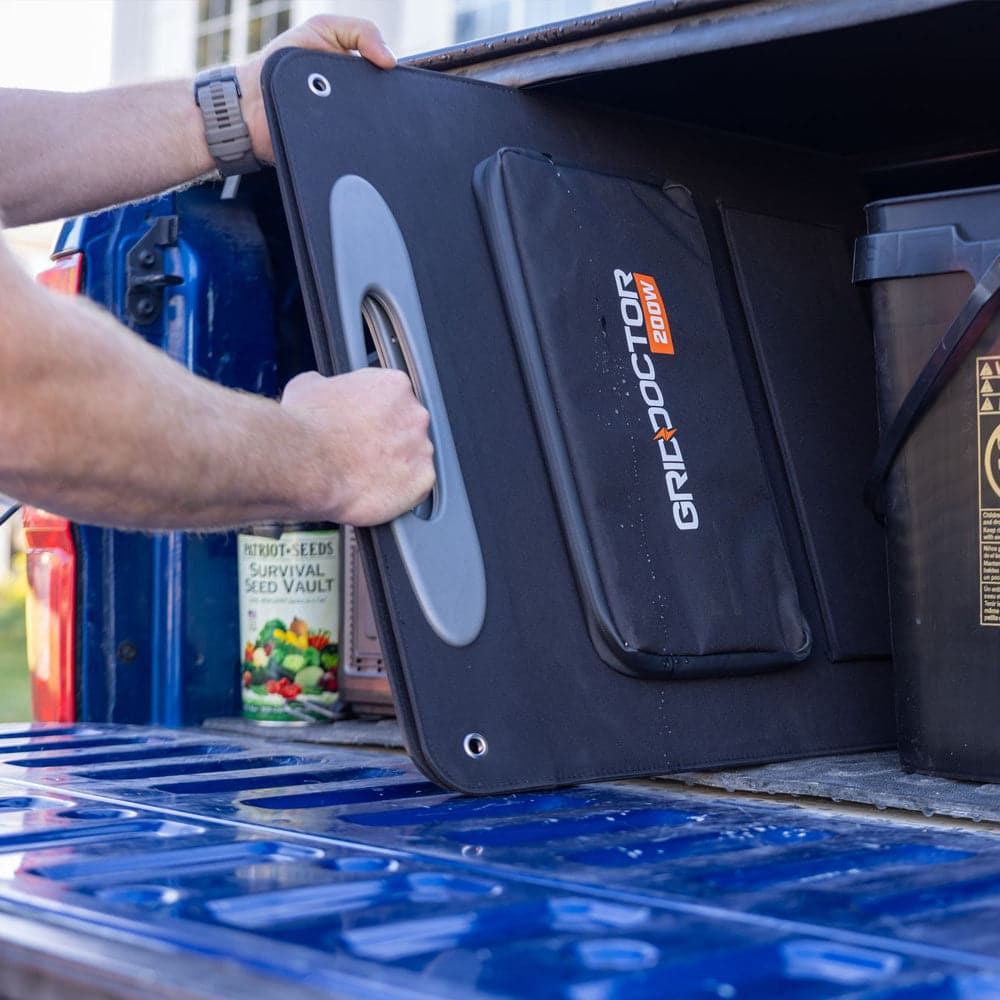

This solar panel can be stored without taking up precious space. Slide it under a bed or couch, slip it into the trunk of your car, or tuck it behind a door.
THE ULTIMATE ENERGY-EFFICIENT OPTION
You won’t find a more energy-efficient solar panel anywhere else. It recharges faster, returning your electronics to full operational status quickly. Efficient energy use extends the longevity of your power source, keeping critical communication tools in operation longer.
USING IT IS EASY
Power is waiting. Press forward with the simple press of a button. No experience or know-how needed! Kids and grandparents alike can bring this battery to life. It's not rocket science; just pure power.
Collapsible content
GET STARTED
- Open the solar panel to expose solar cells.
- To maximize solar energy collection, place the solar panel in direct sunlight and position it perpendicular to the sun’s rays.
When planning on solar panel power, anticipate the solar panel providing +50% of its rated capacity. For example, this 200W solar panel will provide between 100W to 180W of electricity. This is due to the changing positions of the sun, cloud cover, the season, and similar factors. But with the capability to connect up to four 200W solar panels at once, that power potential increases up to 720W!
CONNECTING PANEL
- Open the zipper pouch on the solar panel and pull out the cable with MC4 connectors.
- Attach the MC4 connectors to the MC4-XT60 solar charging cable.
- Plug the XT60 end of the solar charging cable into the port labeled “INPUT” on the Grid Doctor 3300 battery.
- The battery will automatically begin to charge. When fully charged, it will immediately stop charging.
Refer to the included instruction manual for more detailed directions on setup, charging, connecting to multiple solar panels, using with the Grid Doctor 3300 battery, and more.
